Product Feature
・Wide oiutdoor operating range; -5°C to 54°C (cooling), -20° to 30° (heating).
・Snow proof function.
・2-in-1 refrigerant flow path design.
・3-stage module back-up function.
・Remote ON/OFF control function, emergency operation stop function.
Product Range (Basic Modules)
・6 basic module models, covering 8HP (85k BTU/h) to 18HP (170.5k BTU/h).
・Max 4 modules can be combined together to generate max. 72 HP (200kW or
682k BTU/h).
・One unit(basic module) can be connected with max. 20 indoor units, combination
of 4 modules can connect max. 64 indoor units.
| Hz | Ph | Voltage | 8HP 85k BTU 25.2kW |
10HP 95k BTU 28kW |
12HP 114k BTU 33.5kW |
14HP 136k BTU 40kW |
16HP 153k BTU 45kW |
18HP 170.5 BTU 50kW |
|---|---|---|---|---|---|---|---|---|
| 50 | 3 | 380-415V | ● | ● | ● | ● | ● | ● |
| 60 | 3 | 220-240V | ● | ● | ● | ● | ● | ● |
| 60 | 3 | 208-230V | ● | ● | ● | ● | ● | ● |
| 60 | 3 | 380-415V | ● | ● | ● | ● | ● | ● |
Energy Efficiency & Noise level
| Capacity | 8HP | 10HP | 12HP | 14HP | 16HP |
18HP |
|---|---|---|---|---|---|---|
| Cooling EER | 4.35 | 4.04 | 3.95 | 3.78 | 3.54 | 4.46 |
| Heating COP | 4.66 | 4.38 | 3.95 | 3.78 | 3.54 | 3.46 |
| Sound Pressure Level dB(A) | 58 | 58 | 58 | 60 | 60 | 60 |
| Compressor | DC | DC | DC | DC+DC | DC+DC | DC+DC |
| Fan Motor | DC | DC | DC+DC | DC+DC | DC+DC | DC+DC |

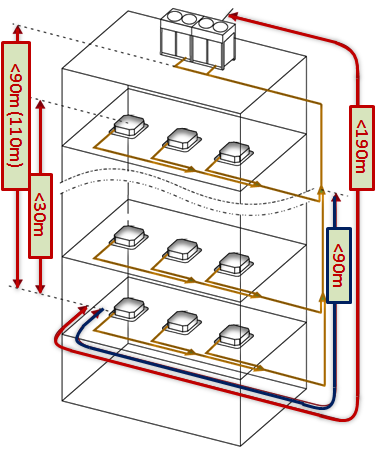

Long Piping and Height Difference
・Total pipe length: 1000m
・The longest pipe length: 190m/220m
・Length from the first indoor distributor to the last indoor unit: 90m
・Height difference between indoor and outdoor unit: Outdoor unit above
<90m, Outdor unit below <110m
・Height difference between indoor units: 30m
