Product Feature

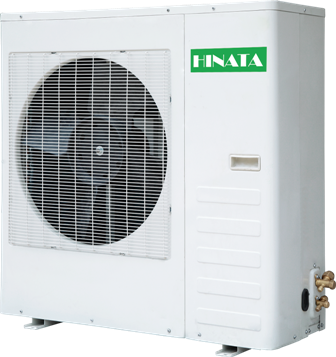

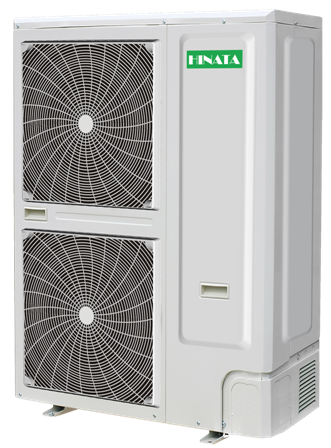

・Small capacity VRF system; 8kW to 33.5kW.
・Wide oiutdoor operating range; -5°C to 50°C (cooling), -20° to 30° (heating).
・Fan reverse rotation protection in standby.
・Active PFC module ensuring high (98%) power utilization factor/ratio.
・Suitable for all kind of rooms - 11 types and 68 models of indoor unit.
・Max 18 indoor unit can be connected.
Product Range
10 models, covering 8kW to 33.5kW. Can be connected with max. 18 indoor units.
| Hz | Ph | Voltage | 8kW (27.3k-BTU/h) |
10kW (34k) |
12.5kW (42k) |
14kW (47k) |
16kW (54k) |
18kW (61k) |
22.4kW (76.5k) |
26KW (88.7k) |
28kW (95.5k) |
33.5kW (114.2k) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 1 | 220-240 | ● | ● | ● | ● | ● | |||||
| 50 | 1 | 208-230 | ● | ● | ● | ● | ● | |||||
| 50 | 3 | 380-415 | ● | ● | ● | ● | ● | ● | ● | ● | ||
| 60 | 1 | 220-240 | ● | ● | ● | ● | ● | |||||
| 60 | 1 | 208-230 | ● | ● | ● | ● | ● | |||||
| 60 | 3 | 380-415 | ● | ● | ● | ● | ● | ● | ● | ● |
Energy Efficiency & Noise level
| Capacity | 8kW (27.3k-BTU/h) |
10kW (34k) |
12.5kW (42k) |
14kW (47k) |
16kW (54k) |
18kW (61k) |
22.4kW (76.5k) |
26KW (88.7k) |
28kW (95.5k) |
33.5kW (114.2k) |
|---|---|---|---|---|---|---|---|---|---|---|
| Cooling EER | 3.72 | 3.70 | 3.69 | 3.52 | 3.50 | 3.47 | 3.32 | 3.45 | 3.37 | 3.54 |
| Heating COP | 3.95 | 3.93 | 3.83 | 3.72 | 3.61 | 3.56 | 4.27 | 4.21 | 3.85 | 4.17 |
| Sound Pressure Level dB(A) | 45-56 | 45-56 | 45-58 | 45-58 | 45-58 | 45-58 | 45-58 | 46-60 | 47-60 | 48-62 |
| Compressor | DC | DC | DC | DC | DC | DC | DC | DC | DC | DC |
| Fan Motor | DC | DC | DC+DC | DC+DC | DC+DC | DC+DC | DC+DC | DC+DC | DC+DC | DC+DC |
Long Piping and Height Difference

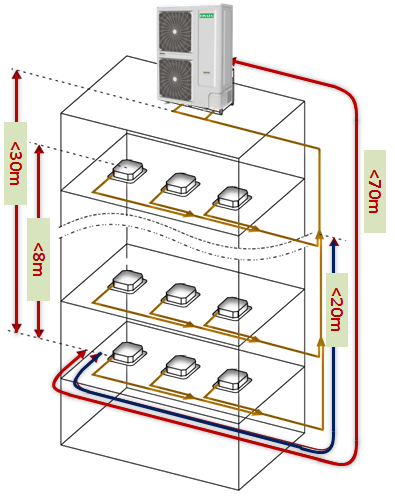

・Total pipe length: 100m/120m
・The longest pipe length: 70m
・Length from the first indoor distributor to the last indoor unit: 20m
・Height difference between indoor and outdoor unit: Outdoor unit above
<30m, Outdor unit below <20m
・Height difference between indoor units: 8m
