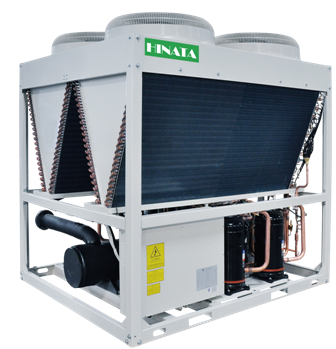

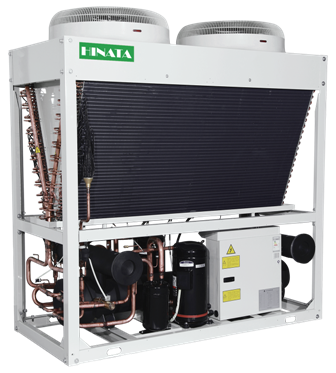

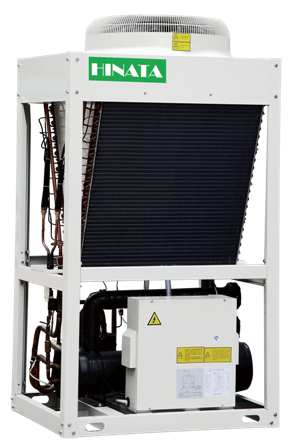

Air Cooled Water Chiller
30 kW / 65kW / 130kW
Product Feature
・Modular design, the max. combination of the system consists of 1 main
unit and 15 slave units.
・Easy connection between main unit and slave units.
・Brand new design for easy maintaining.
・V-shape heat exchanger for Higher efficiency.
・Shell & Tube exchanger for Higher reliability in any water conditions.
・Copeland Scroll Compressor provides with higher efficiency, higher reliability,
lower noise.
・Back up function by flexible setting of master and slave unit.
・The choise of R22 and ecological refrigerant R410A meet different requirement.
Brazed refrigerant connections for increased leak-tightness.
・Chilled water outlet temperature adjustable by wired controller. In cooling
mode, the adjustable range is 7℃-25℃.
Product Range
| Type | Type | Refrigerant | 30kW (8.5TR) | 65kW (18.5 TR) | 130kW (37 TR) |
|---|---|---|---|---|---|
| Chiller | 50Hz | R22 | ● | ● | ● |
| Chiller | 50Hz | R410A | ● | ● | ● |
| Chiller | 50Hz | R407C | ● | ● | ● |
| FCU | 60Hz | R22 | ● | ● | ● |
| FCU | 60Hz | R410A | ● | ● | ● |
Fan Coil Unit

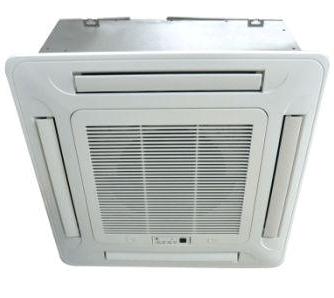

・4 -Way Cassette (Compact); 300-470 CFM

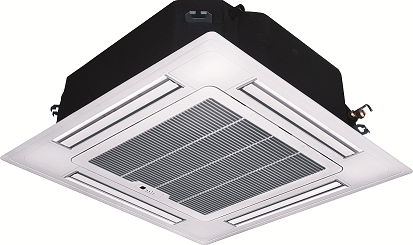

・4-Way Cassette; 600-1000 CFM

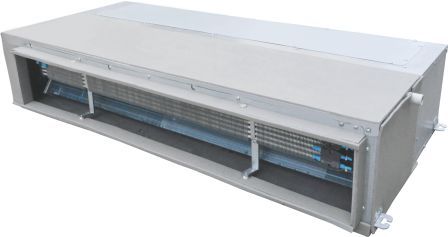

・Duct Type; 200-1400 CFM
Accessories

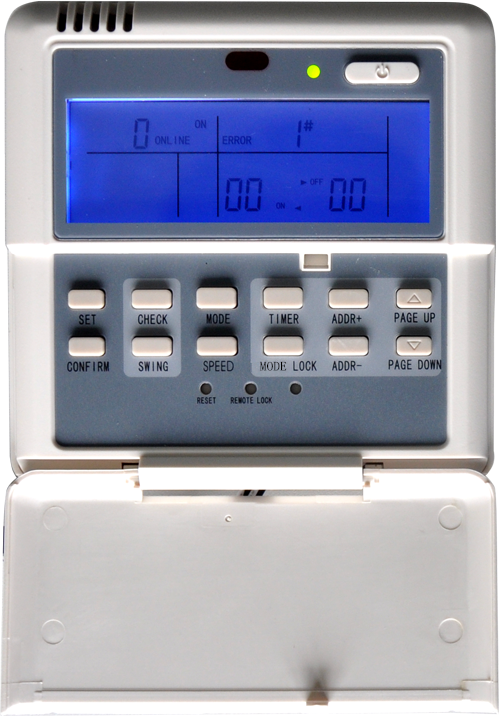

Wired Controller
・One chiller system needs one controller
・Timer function
・Operation and error information inquiry
・Forced defrosting operation
・Button lock

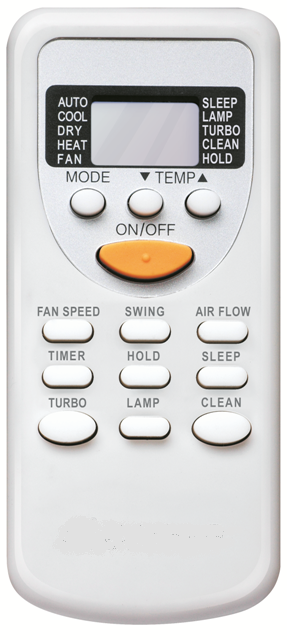

Wireless Controller for cassette type FCUs
・Wireless 8m transmission
・Five operation modes: Auto, cooling, heating, dehumidification, fan
・ON/OFF timer setting (24h)
・Temperature control range 16-32°C
・Three fan speed selection
・Sleep mode function
Support
Hands on training for installation and maintenance offered after purchase
order received.
