Product Feature
・Wide oiutdoor operating range; -5°C to 54°C (cooling), -20° to 30° (heating).
・Snow proof function.
・2-in-1 refrigerant flow path design.
・3-stage module back-up function.
・Remote ON/OFF control function, emergency operation stop function.
Product Range (Basic Modules)
・5 basic module models, covering 8HP (85k BTU/h) to 16HP (153k BTU/h).
・Max 4 modules can be combined together to generate max. 64 HP.
・One unit(basicmodule) can be connected with max. 20 indoor units, combination
of 4 modules can connect max. 64 indoor units.
| Hz | Ph | Voltage | 8HP 85k BTU/h 25.2kW |
10HP 95k BTU/h 28kW |
12HP 114k BTU/h 33.5kW |
14HP 136k BTU/h 40kW |
16HP 153k BTU/h 45kW |
|---|---|---|---|---|---|---|---|
| 50 | 3 | 380-415V | ● | ● | ● | ● | ● |
| 60 | 3 | 220-240V | ● | ● | ● | ● | ● |
| 60 | 3 | 208-230V | ● | ● | ● | ● | ● |
| 60 | 3 | 380-415V | ● | ● | ● | ● | ● |
Energy Efficiency & Noise level
| Capacity | 8HP | 10HP | 12HP | 14HP | 16HP |
|---|---|---|---|---|---|
| Cooling EER | 4.32 | 3.80 | 3.83 | 3.41 | 3.23 |
| Heating COP | 4.49 | 4.17 | 4.25 | 3.96 | 3.75 |
| Sound Pressure Level dB(A) | 58 | 58 | 58 | 60 | 60 |
| Compressor | DC+FIX | DC+FIX | DC+FIX | DC+FIX+FIX | DC+FIX+FIX |
| Fan Motor | DC | DC | DC+DC | DC+DC | DC+DC |

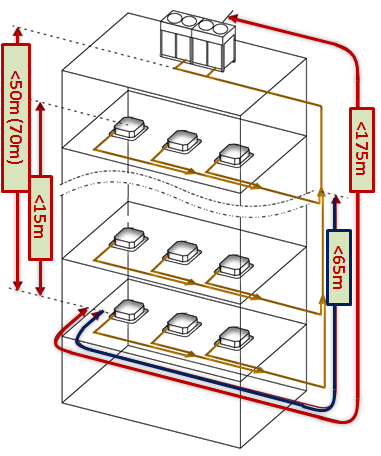

Long Piping and Height Difference
・Total pipe length: 1000m
・The longest pipe length: 175m/200m
・Length from the first indoor distributor to the last indoor unit: 65m
・Height difference between indoor and outdoor unit: Outdoor unit above
<50m, Outdor unit below <70m
・Height difference between indoor units: 15m
